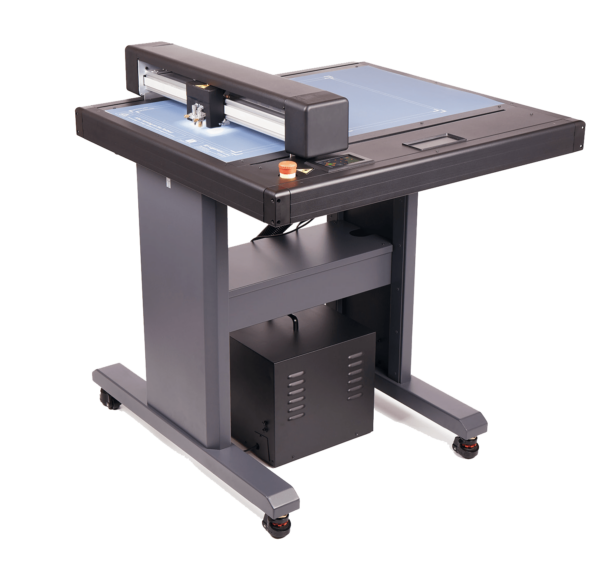

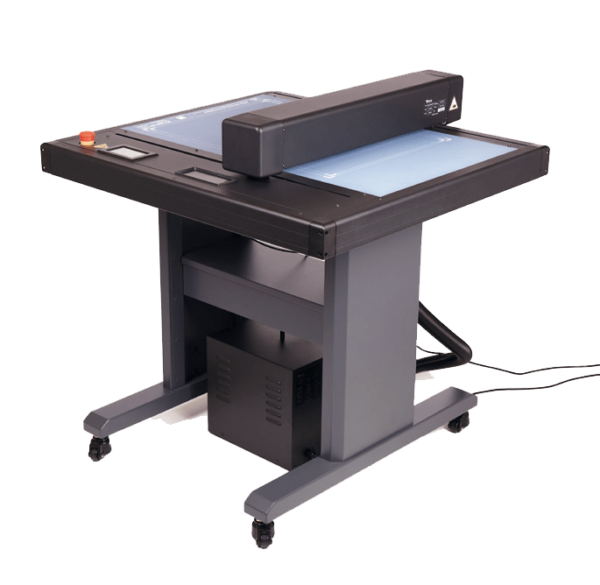

FC-500VC Flyer

What makes the FC-500VC special ?

The FC-5000VC uses a high resolution camera for accurate detection of registration marks (as small as 5 mm) and can see reg marks on both colored and transparent materials. The ability to scan small reg marks saves material, thus reducing production costs. The ability to scan four reg marks within less than 3 seconds saves production time and reduces costs even further.

Click to download the Product Sheet

Kategori: Tagg:
Camera System

The FC-5000VC uses a high resolution camera for accurate detection of registration marks (as small as 5 mm) and can see reg marks on both colored and transparent materials. The ability to scan small reg marks saves material, thus reducing production costs. The ability to scan four reg marks within less than 3 seconds saves production time and reduces costs even further.

User friendly touch screen

Easy toggle of vacuum suction: ON – fast/stable hold, OFF – easy replacement of next item Easy toggle of arrow key speeds for carriage control: Fast (x10) / Slow (x1)Single key press to set origin or return to origin – guarantees accurate positioning. Re-cut button to instantly repeat last job

Advanced contour cutting

The Vulcan FC-500VC efficiently handles materials loaded on a slant and also compensates for size/shape distortions. Precise and accurate cuts are assured with our proprietary fourmark high-tech detection algorithm.

Network interface

A, Stable communications over long distances
B, Control one flatbed cutting plotter from multiple computers
C, Control different flatbed cutting plotters from one computer

U-Disk function

PLT-files saved on USB thumb drives (U-disk) can be used for direct output. This means that the FC-500VC can be used without being connected to a computer.

QRcode system

FC-500VC reads QR-codes on the printed media, allowing automatic matching of print and cut files. This both speeds production and eliminates any chance of mismatched files.

KEY FEATURES :

● Perforation cut
● Kiss cut
● Die cut
● Creasing

Specifications:

Item FC-500VC
Configuration Digital servo system, Flatbed
Media hold-down method Vacuum suction
Maximum cutting speed 700 mm/s (10 to 700 mm/s )
Cutting pressure Tool 1: Max. 5.88 N(600 gf)Tool 2: Max. 5.88 N(600 gf)
Effective cutting area 495x685mm
Mountable media640mm(Y-axis direction)
Minimum character size 5 mm square
Mechanical resolution 0.005 mm (5μm)
Programmable resolution HP-GL: 0.025 mm
Repeatability 0.1mm
Standard interfaces USB2.0 (Full Speed) / U-Disk / Ethernet
Memory 32MB
Command sets HP-GL
Number of tools 2 tools
Tool types Cutter blade / Pen / Creasing/Etching tool
Operating screen 4.3-inch touch LCD
Power supply 100 to 240 V AC, 50/60 Hz (Auto switching)
Power consumption Max. 150VA (machine), Max.550W (vacuum pump)
Operating environment Temperature: 10 to 35 degrees C (35 to 95 degrees F)
Humidity:35 to 75% RH (non-condensing),
External dimensions981(Y)x977(X)x1047(H)mm
Packaging dimensions 115X110X61CM (machine) / 53X45X39CM (vacuum pump)
G.W. / N.W. 113kg / 62kg (machine), 25/23kg (vaccum pump)
Compatible OS Windows and Mac
