LIGHTNING ™

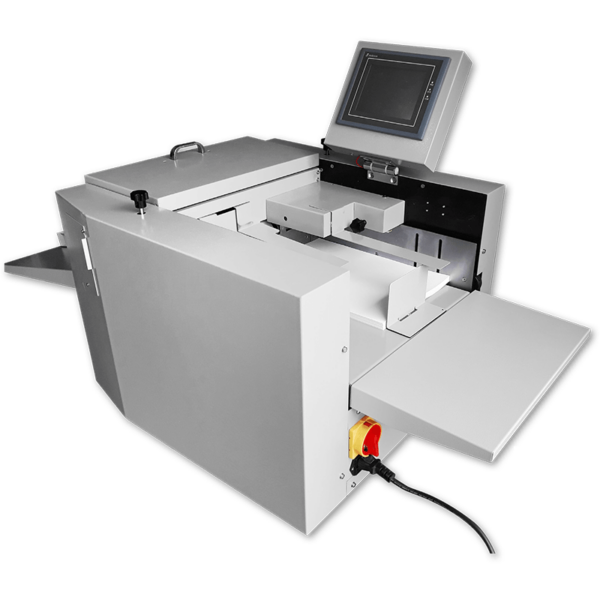

LIGHTNING Auto Ffeed

in the smallest space imaginable a fully auto feeding automatic Creaser/Perforator at less cost than most manual machines !

!
Kategorier: , Tagg:
KEY FEATURES :
  • Infeed width to 330x450mm long (option to 650mm)
  • 1 sec process time on A4 sheet with 1 crease S.E.F
  • Processes card from 90gsm equivalent to 350gsm equivalent
  • 12 programmable lines with min. 1mm spacing and 1.2mm crease line
  • Digital colour TFT display with all data visible in one glance
  • Process diagram is shown on the screen (what you see is what you get)
  • Outfeed tray with magnetic guides and stops
  • Position accuracy to 0.2mm
  • Amazing small footprint: base only 600x600mm; plus 500mm for outfeed tray
  • 1 to 2 Programmable strike perf channels with 52mm min line spacing and 5mm min step (option)
  • Up to 4 strikes Sequences / Channel
OPTIONS
  • Cross perfing bar 24 tpi to approx 180gsm card
  • Linear perfing tools set to approx 240gsm card (up to 4 fittable with 24 mm line spacing)
VARIANTS
  • Linear perfing 24tpi or 12tpi
  • Linear  full slitting
  • Linear scoring 1.2mm line
  • Trays
  • SRA3 long infeed tray extension
  • 650mm ultra long tray extension

#DM0130  iCREASE-MULTI

OPTION :

#DM0130LT  LONG TRAY

LINEAR TOOLS

#DM0102PW12  PERF WHEEL SET

#DM0102PW24  PERF WHEEL SET

#DM0102SL SLIT WHEEL SET

#DM0102ST SCORE WHEEL SET

#DM0102PB CROSS PERF BAR 24tpi

Technical specifications:

Dimensions : 65x65x65cm
Power supply : 220V, 50hz, 1.5amp with ground line
Weight : 50 kg
Triwall carton Ca. 65kg
Packed gross weight
