S II family

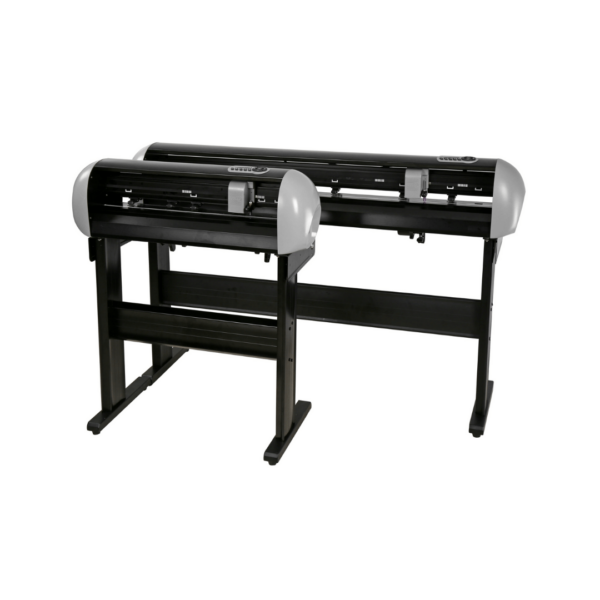

VINYL CUTTER S II SERIES

The S II vinyl cutter series is intended for professional users who need the highest level of performance. The S II models feature a new and attractive design by Secabo. An easy-to-understand menu navigation with integrated calibration wizard comfortably guides users through all steps. The Secabo SII vinyl cutters operate on extremely quiet and precise servo motors, and offer a high throughput. With a maximum pressure up to 750 grams they are capable of processing complex cutting tasks and thick media. All common materials with a cutting width of up to 63 or 126cm can be processed – from plotting vinyl, self-adhesive films and flex or flock films over stencil films to paper and cardboard. Optimal results are achieved by using the LAPOS contour cutting technology and the multilingual cutting software DrawCut LITE, which is included. The supplied stand with a roll mount offers additional convenience.

Click to download the Product Sheet

Kategori: Tagg:
New optimized controller
– so you can keep track of everything

The controller of the Secabo cutting plotter has been optimized for smooth use and easy access to all important functions. The adapted design and the improved menu navigation should ensure an even better overview of the daily work routine.

DrawCut LITE cutting software
– standard on board!

The multilingual cutting software DrawCut LITE for Windows is included in the scope of delivery. DrawCut LITE not only reliably handles design and layout tasks and imports a wealth of graphic file formats, but also steers the Print&Cut applications of LAPOS 2, DrawCut LITE has many powerful text tools, vector functions, plotting and weeding tools and is therefore the ideal cutting software for quickly achieving professional plotting results with little training.

Sturdy stand with roll holder
– because order must be orderly

A sturdy stand is of course also included in the scope of delivery. The roll holder makes working particularly fun: film rolls are unwound smoothly and jerk-free, ensuring high precision even with long plots.

KEY FEATURES :

● Simple menu navigation
● Low noise
● Mac compatible
● 64 bit compatible
● Plug & play
● Servo motors
● High precision
● LAPOS
● DrawCut LITE Cutting software

Technical Data S60 ll:

Max. Media width 720mm
Max. Cutting width 630mm
Max. Media thickness 1mm
Max. cutting speed 960mm/s
Drive Servo motors
Contact pressure 50 – 750g
Mechanical resolution 0.01245mm
Connections USB
Contour cut function LAPOS, 4 crop marks
Internal memory Backlit graphic LCD, gel buttons
Weight without packaging 12kg
Weight with packaging and stand 22kg
Dimensions 92cm × 26cm × 26cm

Items included Vinyl cutter, multilingual cutting software
DrawCut LITE (Windows) or SignCut 1-year license (Mac),
drag knife, ball-bearing knife holder, plot pen,
DIN A3 plot surface, stand with roll mount, connection cable

Technical Data S120 ll:

Max. Media width 1350mm
Max. Cutting width 1260mm
Max. Media thickness 1mm
Max. cutting speed 960mm/s
Drive Servo motors
Contact pressure 50 – 750g
Mechanical resolution 0.01245mm
Connections USB
Contour cut function LAPOS, 4 crop marks
Internal memory Backlit graphic LCD, gel buttons
Weight without packaging 22kg
Weight with packaging and stand 32kg
Dimensions 160cm × 26cm × 26cm

Items included Vinyl cutter, multilingual cutting software
DrawCut LITE (Windows) or SignCut 1-year license (Mac),
drag knife, ball-bearing knife holder, plot pen,
DIN A3 plot surface, stand with roll mount, connection cable
