Secabo TC7 SMART

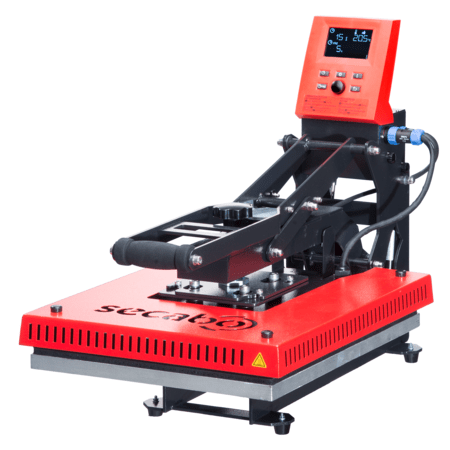

Secabo TC7 SMART modular heat
press 40cm x 50cm with Bluetooth
Kategori: Taggar: ,
Overview
With its new TC7 SMART heat press, Secabo opens up new innovative paths leading to even better performance. This
latest development of the successful automatic knee-lever press Secabo TC7 introduces a world novelty to the market,
which opens up a variety of new options to users: The controller of the TC7 SMART now comes equipped with a
Bluetooth interface that allows for controlling the press via the free app Secabo Smart Transfer, while also providing
access to a comprehensive function database. This allows users to: Simply enter the type of fabric and the transfer
material and immediately retrieve the matching combinations of temperature, time and pressure. Additional features,
such as the calculation of heat-up times and warning functions, make the app a valuable assistant for all common heat
transfer methods. The new heat press Secabo TC7 SMART offers a work surface of 40 x 50 cm, is easy to use and
robust in ongoing operation. The modular design allows for quick and easy installation of removable plates in various
formats, a quick change system and a slide extension.
Secabo TC7 SMART modular heat
press 40cm x 50cm with Bluetooth
Secabo GmbH | Hochstatt 6-8 | 85283 Wolnzach | Deutschland page 1
Features
Secabo Smart Transfer App
The device is ready for control via the Secabo
app. With the aid of this app, suitable transfer
parameters can be selected for your application.
Bluetooth interface
The device can be connected and controlled via
Bluetooth with a mobile device and the Secabo
Smart Transfer App.
Digital controller
Duration and temperature can easily be
adjusted and monitored using the digital
controller.
Large workspace
Due to the large folding angle of 40°, the
transfer objects can be aligned comfortably and
precisely.
Low hysteresis
A state-of-the-art controller reduces the
temperature fluctuations to a minimum, thus
ensuring consistently good transfer results.
Variable work pressure
The work pressure is easy to adjust – in each
case matching the transfer object and
procedure.
Opens automatically
The heat press automatically opens after the set
time has elapsed.
Safe working
The safety and quality of this device is constantly
monitored – according to German safety
standards.
Precise temperature
distribution
The high-quality heat plate ensures an exact
temperature distribution over the entire heating
surface.
Replaceable plates
Interchangeable base plates available – also in
combination with a quick-change system
Secabo TC7 SMART modular heat
press 40cm x 50cm with Bluetooth
Secabo GmbH | Hochstatt 6-8 | 85283 Wolnzach | Deutschland page 2
Technical Data
Dimensions open 43cm x 93cm x 74cm
Dimensions closed 43cm x 57cm x 75cm
working area 40cm x 50cm
net weight 39 kg
scope of delivery Mechanical base, heating plate and base plate, controller box,
C13 power supply cable, tools, operating instructions
pressure setting the heating plate can be adjusted with a hand reel
max. downforce 250 g / cm ²
max temperature 225 °C
maximum time preset 999 s
max. clam angle 40 °
power supply AC voltage 230V / 50Hz – 60Hz, 2.0kW
environment +5°C – +35°C / 30% – 70% humidity
Brand Secabo
KEY FEATURES :

● Simple menu navigation
● Mac compatible
● USB Interface
● 64 bit compatible
● Plug & play
● Improved LAPOS
● DrawCut LITE

Technical Data C60 V:

Max. Media width 720mm
Max. Cutting width 630mm
Max. Media thickness 1mm
Max. cutting speed 600mm/s
Contact pressure 50 – 500g
Mechanical resolution 0.0245mm
Connections USB
Contour cut function LAPOS, 4 crop marks
Operation Backlit graphic LCD, gel buttons
Weight without packaging 12kg
Weight with packaging and stand 22kg
Dimensions 92cm × 26cm × 26cm
Items included Vinyl cutter, multilingual cutting software
DrawCut LITE (Windows) or SignCut 1-year
license (Mac), drag knife, ball-bearing knife holder,
plot pen, DIN A3 plot surface, stand with roll mount,
connection cable

Technical Data C120 V:

Max. Media width 1350mm
Max. Cutting width 1260mm
Max. Media thickness 1mm
Max. cutting speed 600mm/s
Contact pressure 50 – 500g
Mechanical resolution 0.0245mm
Connections USB
Contour cut function LAPOS, 4 crop marks
Operation Backlit graphic LCD, gel buttons
Weight without packaging 22kg
Weight with packaging and stand 32kg
Dimensions 160cm × 26cm × 26cm
Items included Vinyl cutter, multilingual cutting software
DrawCut LITE (Windows) or SignCut 1-year
license (Mac), drag knife, ball-bearing knife holder,
plot pen, DIN A3 plot surface, stand with roll mount,
connection cable
