Secabo TCC SMART

Secabo TCC SMART automatic cap
press



Kategori: Taggar: ,
Overview
With the new TCC SMART cap press Secabo opens up innovative ways and thus an even better performance in the
finishing of baseball caps, hats and similar products. The TCC SMART controller is equipped with a Bluetooth interface
which, with the free Secabo SMART Transfer app, allows press control while simultaneously accessing a comprehensive
function database. For the user this means: Simply enter the type of fabric and the transfer material and the
appropriate combinations for temperature, time and pressure can be called up. Additional functions such as the

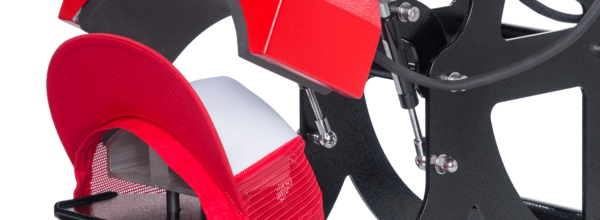

calculation of heating times and warning functions make the app a valuable aid for all common hot transfer processes.The contact pressure of the new Secabo TCC SMART cap transfer press is set by means of a handwheel on the
underside of the easily exchangeable base elements, a cap that has been pulled on is tensioned from below by means of
a clamp. The automatic opening TCC SMART has a large opening angle and a button for manual opening before the set
time expires. It is suitable for professional application of all common hot transfer processes such as flock foils, flex foils,
sublimation, transfer, inkjet-flex etc.
Secabo TCC SMART automatic cap
press
Secabo GmbH | Hochstatt 6-8 | 85283 Wolnzach | Deutschland page 1
Technical Data
Dimensions open 24 cm x 71 cm x 53 cm
Dimensions closed 24 cm x 59 cm x 53 cm
working area 15cm x 8cm
net weight 15 kg
weight with package 22 kg
scope of delivery
Mechanical base with heating element, basic element 14.6cm x
7.6cm, controller box, C13 power cable, tools, operating
instructions
max temperature 220 °C
maximum time preset 999 s
max. clam angle 35 °
power supply AC voltage 230V / 50Hz – 60Hz, 1.0kW
environment +5°C – +35°C / 30% – 70% humidity
Brand Secabo
KEY FEATURES :

● Simple menu navigation
● Mac compatible
● USB Interface
● 64 bit compatible
● Plug & play
● Improved LAPOS
● DrawCut LITE

Technical Data C60 V:

Max. Media width 720mm
Max. Cutting width 630mm
Max. Media thickness 1mm
Max. cutting speed 600mm/s
Contact pressure 50 – 500g
Mechanical resolution 0.0245mm
Connections USB
Contour cut function LAPOS, 4 crop marks
Operation Backlit graphic LCD, gel buttons
Weight without packaging 12kg
Weight with packaging and stand 22kg
Dimensions 92cm × 26cm × 26cm
Items included Vinyl cutter, multilingual cutting software
DrawCut LITE (Windows) or SignCut 1-year
license (Mac), drag knife, ball-bearing knife holder,
plot pen, DIN A3 plot surface, stand with roll mount,
connection cable

Technical Data C120 V:

Max. Media width 1350mm
Max. Cutting width 1260mm
Max. Media thickness 1mm
Max. cutting speed 600mm/s
Contact pressure 50 – 500g
Mechanical resolution 0.0245mm
Connections USB
Contour cut function LAPOS, 4 crop marks
Operation Backlit graphic LCD, gel buttons
Weight without packaging 22kg
Weight with packaging and stand 32kg
Dimensions 160cm × 26cm × 26cm
Items included Vinyl cutter, multilingual cutting software
DrawCut LITE (Windows) or SignCut 1-year
license (Mac), drag knife, ball-bearing knife holder,
plot pen, DIN A3 plot surface, stand with roll mount,
connection cable
