Secabo TS7

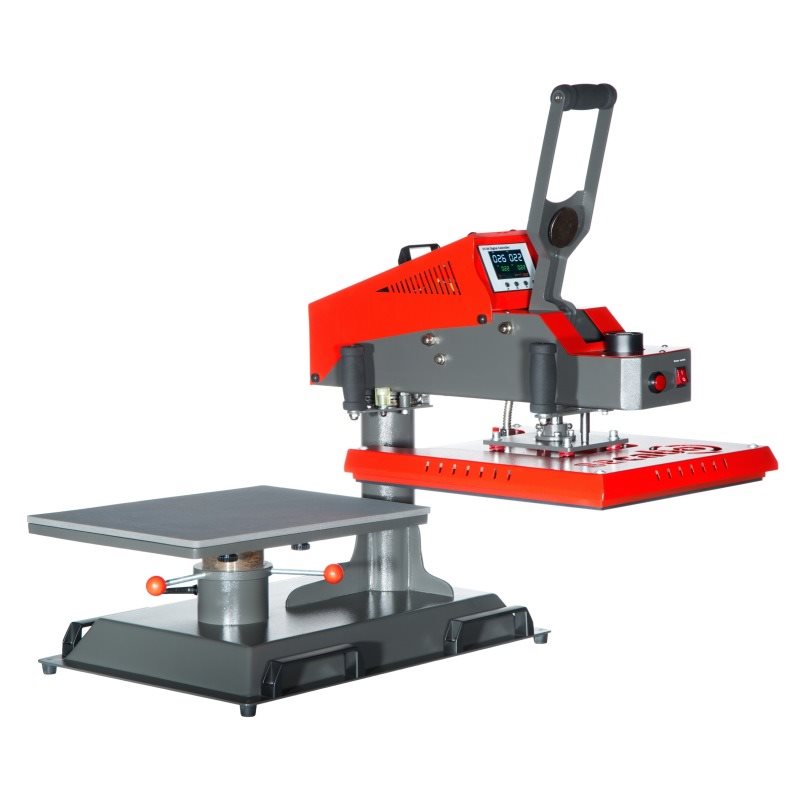

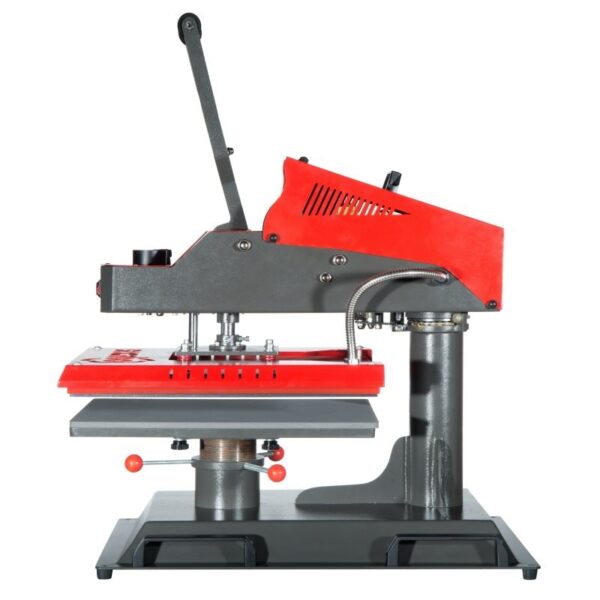

Secabo TS7 swing away heat press



Kategori: Taggar: ,
Overview
With its comfortable automatic swing away system, the new and improved Secabo TS7 transfer press provides a
particularly large working space for easy alignment of the transfer objects. The large base plate with dimensions of
40cm x 50cm is placed in portrait orientation, which makes an exact positioning of elements and objects easier. The
auto-open and auto-swing function of the TS7 allows even more flexible and more comfortable working. The Secabo
TS7 is suitable for all common heat transfer methods and can be used in almost any area of transfer technology.
Secabo TS7 swing away heat press
Secabo GmbH | Hochstatt 6-8 | 85283 Wolnzach | Deutschland page 1
Features
Digital controller
Duration and temperature can easily be
adjusted and monitored using the digital
controller.
Large workspace
The heat press can be opened up to 100° to
work easily and safely
Variable work pressure
The work pressure is easy to adjust – in each
case matching the transfer object and
procedure.
Safe working
The safety and quality of this device is constantly
monitored – according to German safety
standards.
Precise temperature
distribution
The high-quality heat plate ensures an exact
temperature distribution over the entire heating
surface.
Low hysteresis
A state-of-the-art controller reduces the
temperature fluctuations to a minimum, thus
ensuring consistently good transfer results.
Technical Data
dimensions 64cm x 70cm x 58cm
working area 40cm x 50cm
net weight 73 kg
scope of delivery heat press, power cord, english manual
pressure setting Height adjustment base plate
max. downforce 170 g/cm²
max temperature 225 °C
maximum time preset 999 s
power supply AC 230V / 50Hz – 60Hz, 1.8kW
environment +5°C – +35°C / 30% – 70% relative
humidity
Brand Secabo
KEY FEATURES :

● Simple menu navigation
● Mac compatible
● USB Interface
● 64 bit compatible
● Plug & play
● Improved LAPOS
● DrawCut LITE

Technical Data C60 V:

Max. Media width 720mm
Max. Cutting width 630mm
Max. Media thickness 1mm
Max. cutting speed 600mm/s
Contact pressure 50 – 500g
Mechanical resolution 0.0245mm
Connections USB
Contour cut function LAPOS, 4 crop marks
Operation Backlit graphic LCD, gel buttons
Weight without packaging 12kg
Weight with packaging and stand 22kg
Dimensions 92cm × 26cm × 26cm
Items included Vinyl cutter, multilingual cutting software
DrawCut LITE (Windows) or SignCut 1-year
license (Mac), drag knife, ball-bearing knife holder,
plot pen, DIN A3 plot surface, stand with roll mount,
connection cable

Technical Data C120 V:

Max. Media width 1350mm
Max. Cutting width 1260mm
Max. Media thickness 1mm
Max. cutting speed 600mm/s
Contact pressure 50 – 500g
Mechanical resolution 0.0245mm
Connections USB
Contour cut function LAPOS, 4 crop marks
Operation Backlit graphic LCD, gel buttons
Weight without packaging 22kg
Weight with packaging and stand 32kg
Dimensions 160cm × 26cm × 26cm
Items included Vinyl cutter, multilingual cutting software
DrawCut LITE (Windows) or SignCut 1-year
license (Mac), drag knife, ball-bearing knife holder,
plot pen, DIN A3 plot surface, stand with roll mount,
connection cable
