Angel 64CW

Skriv ut CMYW i ett enda pass med den här senaste A4-skrivaren från SunAngel. Se vår VITA toner med hög densitet, detta ger liv till bilderde mörkaste materialen. En annan fantastisk funktion – ingår GRATIS i SunAngel 64CW-skrivaren. I paketet är vårt senaste pRIP programvara som gör det möjligt för användare att justera färgbalansen, vita nivåer och spegelbilder redo för överföringstryck.

Click to download the Product Sheet



SPECIFICATION

PRINTER
Maximum Print speed A4: 28 ppm
Time to first print: As fast as 12 seconds
Warm up time: As fast as 26 seconds (from Sleep Mode) Resolution: Up to 1200 x 2400 dpi
Processor speed: 733 MHz

INTERFACE
Connectivity: USB 3.0; 10/100/1OOOBase-T Ethernet
Page description languages: Adobe® PostScript® 3™; PCL® 5e, 6; PDF; TIFF
OS compatibility: Windows®, 7, 8, 10, Server 2000, Server 2003, Server 2008, Server 2008 R2, Server 2012

PAPER
Paper capacity: Bypass Tray: 50 sheets of 80 gsm; Tray 1: 250 sheets of 80 gsm
Paper sizes: Bypass Tray: Custom Sizes: 76 x 127 mm to 216 x 356 mm; Tray 1: Custom Sizes 76 x 147 mm to 216
x 356 mm
Weights: Bypass Tray: 60 to 220 gsm; Tray 1: 60 to 176 gsm
Media types: Bond, Plain, Gard Stock, Custom, Envelopes, Glossy Gard Stock, Hole punched, Labels, Letterhead, Lightweight Cardstock, Lightweight Glossy Gard Stock, Preprinted, Recycled
Output tray capacity: 150 sheets of 80 gsm

GENERAL
Memory: 1GB
Power supply: Voltage: 220-240 VAC +/- 10%; Frequency: 50 Hz +/- 3 Hz, 6A
Power consumption: Operation: Max. 350 W; Standby Mode: Max. 44 W; Power Off Mode: Max. 0.3 W; Sleep Mode: Max 1.0 W
Noise level: Operating: 51.9 dB(A) or less; Standby: 24.9 dB(A) or less Required temperature range: Storage: -20°C to 40°C; Operating: 5°C to 32°C Required relative humidity: 15% to 85%
Dimensions (H x W x D): Packaged: 505 x 634 x 580 mm; Unpackaged: 347 x 420 x 483 mm Weight: Packaged: 29.2 kg; Unpackaged: 23.8 kg
Certification: CE Mark applicable to Directives 2006/95/EC, 2004/108/EC and 1999/5/EC

The SunAngel 64CW printer is based on a Xerox® Phaser® 6510N machine and has been modified to allow SunAngel functionality.  Printer hardware specification is as follows:

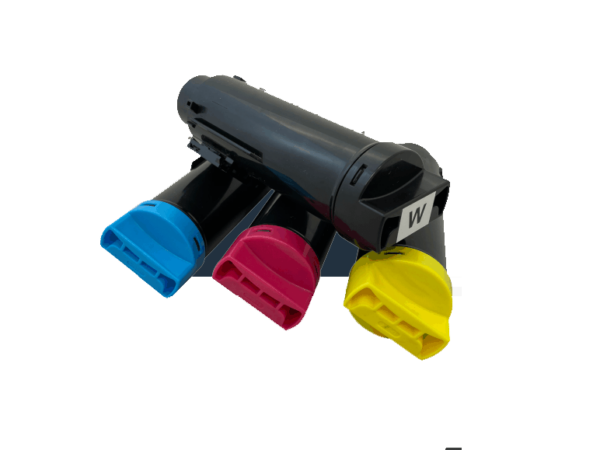

CARTRIDGES

Toner cartridges supplied with printer: One of each (Cyan, Magenta, Yellow): 1,000 pages; White: 1,500 pages Replacement toner cartridges: Cyan: 4,300 pages (640-030); Magenta: 4,300 pages (640-031); Yellow: 4,300 pages

(640-032); White: 2,500 pages (640-000)

Replacement drum units: Cyan: 48,000 pages (640-033); Magenta: 48,000 pages (640-034); Yellow: 48,000 pages

(640-035); White: 10,000 pages (640-001)

Replacement waste toner cartridge: 30,000 pages (640-005)

Print capacity (pages) values quoted are based on average 5% toner coverage. Actual values will vary based on image, area coverage and print mode (toner and waste cartridges) and media type, size, weight, orientation, and usage patterns {drum units).





SPECIFICATION

PRINTER
Maximum Print speed A4: 28 ppm
Time to first print: As fast as 12 seconds
Warm up time: As fast as 26 seconds (from Sleep Mode) Resolution: Up to 1200 x 2400 dpi
Processor speed: 733 MHz

INTERFACE
Connectivity: USB 3.0; 10/100/1OOOBase-T Ethernet
Page description languages: Adobe® PostScript® 3™; PCL® 5e, 6; PDF; TIFF
OS compatibility: Windows®, 7, 8, 10, Server 2000, Server 2003, Server 2008, Server 2008 R2, Server 2012

PAPER
Paper capacity: Bypass Tray: 50 sheets of 80 gsm; Tray 1: 250 sheets of 80 gsm
Paper sizes: Bypass Tray: Custom Sizes: 76 x 127 mm to 216 x 356 mm; Tray 1: Custom Sizes 76 x 147 mm to 216
x 356 mm
Weights: Bypass Tray: 60 to 220 gsm; Tray 1: 60 to 176 gsm
Media types: Bond, Plain, Gard Stock, Custom, Envelopes, Glossy Gard Stock, Hole punched, Labels, Letterhead, Lightweight Cardstock, Lightweight Glossy Gard Stock, Preprinted, Recycled
Output tray capacity: 150 sheets of 80 gsm

GENERAL
Memory: 1GB
Power supply: Voltage: 220-240 VAC +/- 10%; Frequency: 50 Hz +/- 3 Hz, 6A
Power consumption: Operation: Max. 350 W; Standby Mode: Max. 44 W; Power Off Mode: Max. 0.3 W; Sleep Mode: Max 1.0 W
Noise level: Operating: 51.9 dB(A) or less; Standby: 24.9 dB(A) or less Required temperature range: Storage: -20°C to 40°C; Operating: 5°C to 32°C Required relative humidity: 15% to 85%
Dimensions (H x W x D): Packaged: 505 x 634 x 580 mm; Unpackaged: 347 x 420 x 483 mm Weight: Packaged: 29.2 kg; Unpackaged: 23.8 kg
Certification: CE Mark applicable to Directives 2006/95/EC, 2004/108/EC and 1999/5/EC
